Overview

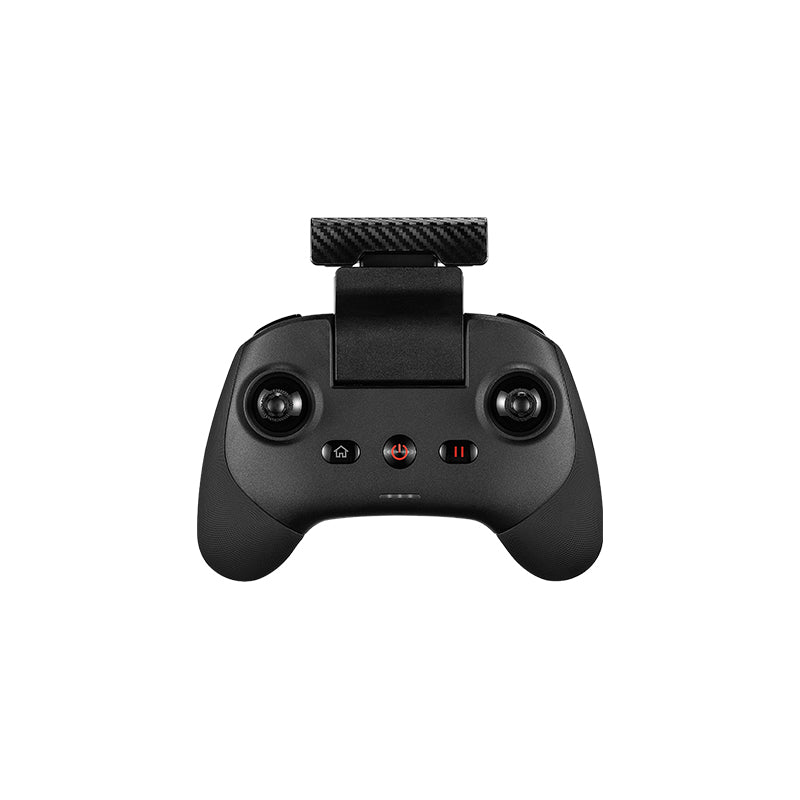

The remote controller for the EVO Nano series adopts the new generation of Autel Skylink image transmission technology of Autel Robotics, has strong anti-interference capability and supports the double-emission and double-receiving of 2.4GHz, 5.8GHz and 5.2GHz.
It can complete the control and setting of aircraft and camera within at most 10km communication distance (FCC, no interference, no blocking) and can display a high-definition picture in a mobile device in a real-time manner by Autel Sky App.
The telescopic mobile device support can stably support the mobile device, and the built-in battery of the remote controller is 3930mAh that can work for about 3.5h.
Specification
| Operating frequency | 2.400-2.4835GHz 5.725-5.850GHz 5.150-5.250GHz |
| Backward | Accurate measurement range：0.5~18m Effective sensing speed：<12m/s FOV：Horizontal<40°,Vertical<30° |
| Max transmission distance (unobstructed, free of interference) |
FCC：10km |
| Operating temperature | 0°C ~40°C |
| Transmission power (EIRP) | FCC：≤30dBm |
| Battery capacity | 3930mAh |
| Max battery life | ~ 3.5h (when connected to a mobile phone) ~ 2.5h (when not connected to mobile phone) |
| Interface type | Type C |
| Transmission system | Autel SkyLink |
| Realtime transmission quality | Transmission distance<1km：2.7K 30fps Transmission distance>1km：720P 30fps |
| Transmission bitrate | 90Mbps |
| Transmission delay | ≤200ms |
