【Auto 5% Off】Autel Robotics EVO II Pro Enterprise [V3]

Public Safety

Assess threats from a safe distance or patrol an area during an investigation, freeing up manpower for other tasks.

Traffic Supervision

Monitor traffic flow over a larger areaand crack down on traffic violationsto improve safety for everyone on theroad.

Power Inspection

Zip between transmission towersto quickly spot structural damageor overheating electrical elementssaving time and labor costs.

Search and Rescue

Quickly locate missing persons byusing automated mission modesto cover larger search areas insituations where every secondcounts.

Firefighting

Soar above the flames to identify hotspots, locate victims,and monitor changing conditions, reducing the risk for crew members on the ground.

Accident Reconstruction

The EVO Il Pro Enterprise V3 is excellent for accident reconstruction, and is compatible with Pix4D,DroneDeploy,and SkyeBrowse.

Mapping

Autel EVO II Pro Enterprise V3 is the perfect choice for any aerial cinematographer or mapping pilot.

Autel EVO 2 Pro Enterprise V3 Specs

• Aircraft

  Takeoff Weight(Without Accessories)	EVO II Pro Enterprise：2.45 lbs (1110 g)
  Max Takeoff Weight	1999 g
  Diagonal Length	16.8 inches (427 mm)
  Size(L*W*H)	Folded: 9.6*5.1*4.4 inches; 245*130*111mm Unfolded: 19.9*24.4*4.4 inches; 506*620*111mm
  Max Service Ceiling Altitude	4.3 miles (7000 m) MSL
  Max Ascent Speed	18 mph (8 m/s) (Ludicrous)
  Max Descent Speed	9 mph (4 m/s) (Ludicrous)
  Max Level Flight Speed	45 mph (20 m/s) (Ludicrous)
  Max angular velocity	120°/s
  Max tilt angle	33° (Ludicrous)
  Max Flight Time (no wind)	42 min（without accessories）
  Max Hovering Time (no wind)	38 min（with strobe） 29 min（with spotlight） 34 min（with loudspeaker） 36 min（with RTK module）
  Operating Temperature Range	14℉ to 104℉ (-10℃ to 40℃)
  Max Wind Speed Resistance	27mph, 12 m/s (Take-off and landing)
  Operating Frequency	2.400 GHz - 2.4835 GHz； 5.725GHz - 5.850 GHz
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power (E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：9.3 miles (15 km) CE：5 miles (8 km)
  Display screen	2048x1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB

• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

• EVO II Pro Enterprise V3 visual camera

  Sensor	1 inch CMOS; 20M pixels
  Lens	FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO range	Video: 100-44000 Photos: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / 12bits DNG / JPG+12bits DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P120/P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT

• Accessories

  Strobe	Dimensions：39*72*34 mm Weight：19.5 g Connections：Floating Connectors Power：Avg. 1.6W Controllable Range：5000 m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
  Loudspeaker	Dimensions：46*80*77 mm Weight：98.5 g Connections：Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45°
  Spotlight	Dimensions：48.5*72*63 mm Weight：77 g Connections：Floating Connectors Power：Max 35W Controllable Range：30 m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

Introducing: EVO II Enterprise

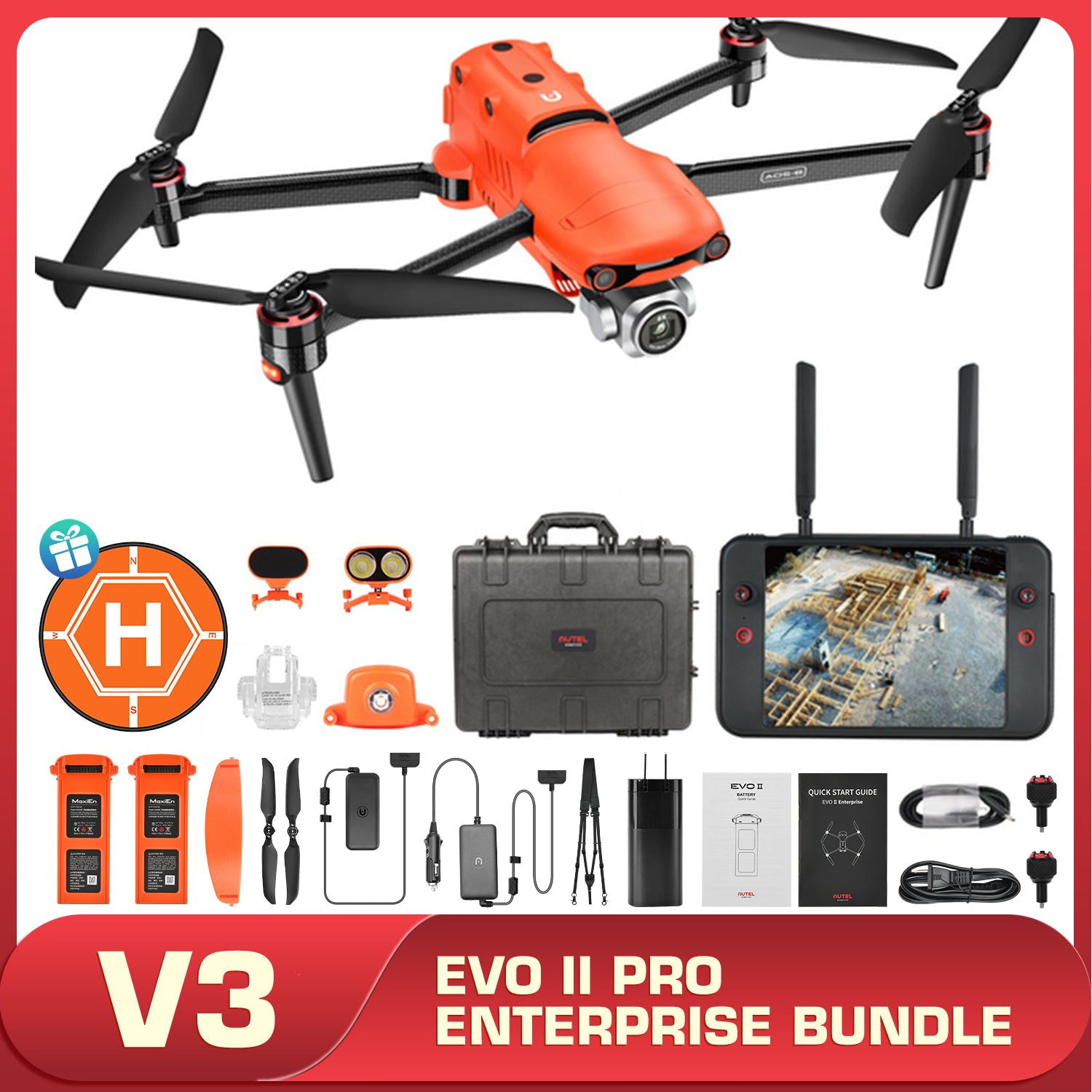

Autel EVO II Pro Enterprise [V3] Packing List

• Aircraft *1( (Battery, propeller, gimbal cover, 32G SD card included)
• Remote Controller(sticks included)*1
• Spare Propellers*2 pair
• Spare Battery*2
• Battery Charger+Power Cable*1
• Car Charger*1
• Multi-Charger*1
• RC Charger *1
• RC Charging Cable*1
• Spare Control Stick (pair)*1
• RC Protective Case*1
• RC Lanyard*1
• Extended Port Cover*1
• Protector Case*1
• Quick Guide*1
• Loudspeaker*1
• Spotlight*1
• Strobe*1

EVO II Pro V3 Enterprise FAQ

Q: What expanded accessories are included in this bundle?
A： 1. Loudspeaker for long-distance communication.
2. Spotlight for searching at night or low light condition.
3. Strobe for Indicating the location of the aircraft during night.
4. The drone are also compatible with RTK module for mapping. (Not included)

Q: What kind of controller does this V3 bundle contain?
A： The newest Autel Smart Controller V3 is packed in this EVO II PRO V3 bundle. It has 7.9-inch, 2000 nits high-brightness screen and supports SkyLink 2.0 transmission technology.

Q: How long is the battery life?
A： Up to 42 minutes in ideal conditions (excluding industry accessories).

Q: How do I upgrade the firmware for this enterprise drone?
A： To update the firmware:

Method 1 (Manual Firmware Update):
1. Place the microSD card inserted into your EVO II Enterprise unit into your PC and download the latest firmware file from our official website.
2. Paste the firmware file onto your microSD card and then insert the microSD card back into your EVO II Enterprise unit.
3. Power on the Smart Controller, then aircraft. You can now follow the update progress via the screen on your Smart Controller.
4. Once the update is complete, reboot your Smart Controller and aircraft.

Method 2 (OTA, Over-the-Air Firmware Update):
1.Ensure your Smart Controller is connected to a mobile hotspot or WiFi network.
2. When the Smart Controller is connected to a network, if the firmware needs to be upgraded, it will automatically detect the new firmware and prompt you to download.
3. After completing the download as prompted, click "Upgrade" and wait for the operation page to say "Firmware Upgrade Complete".
4. Once the update is complete, reboot your Smart Controller and aircraft.

Q: Which industries can the evo enterprise be used for?
A： Autel EVO 2 PRO enterprise V3 can be used for many fields, such as law enforcement, electrical power inspection, fire rescue, building inspection, disaster response, mapping, searching&rescue and more. Professionals in these fields use the drone to meet daily data collection needs and complete operation tasks stably and efficiently.

Q: What is the image transmission distance between the remote control and the aircraft?
A： In an open, non-interference environment, the FCC standard maximum distance of this EVO II PRO Enterprise V3 is 13 km (8 miles) and the CE standard maximum distance is 7 km (4.34 miles).

Q: Does it support Live stream?
A： Yes, with Autel new Live Deck 2, you can Transmit real-time HD video to a wide variety of devices, giving cross-departmental teams enhanced situational awareness and communication, leading to quicker and better decision making.
