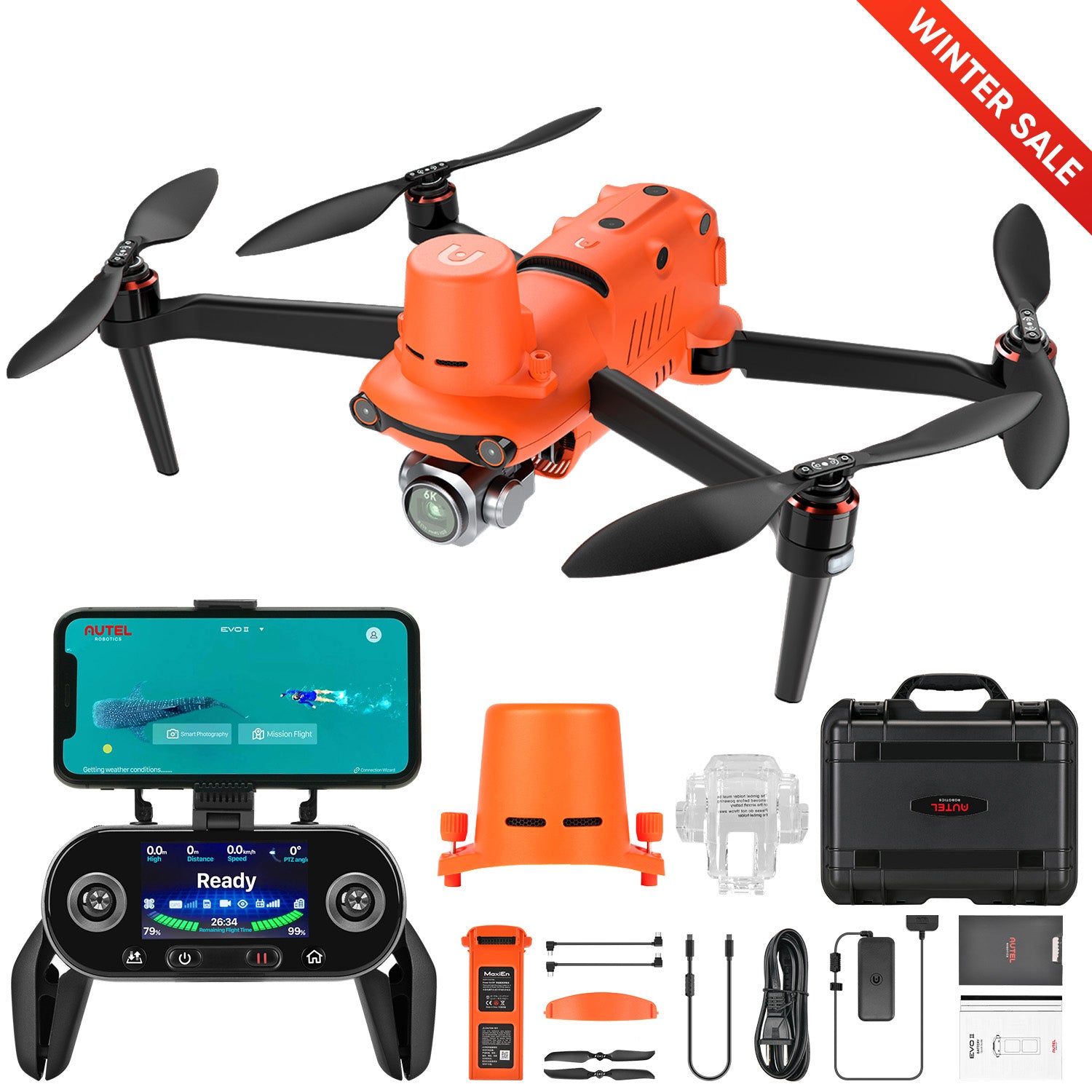

Autel EVO II Pro RTK Rugged Bundle [V2] - 6K Camera Drone

£2,672.00 £3,699.00 saving £1,027.00
| /
  • In Stock - Ship From The UK
  • 3-Day Delivery Guarantee
  • 1-Inch CMOS Sensor
  • 6K Video & 20MP Photo
  • 5.5 Miles Video Transmission
  • Omnidirectional obstacle avoidance
  • 40-Min Max Flight Time
  • Overview
  • SPECS
  • In the box
  • Videos
  • The EVO II Pro RTK integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters, and various other data. The positioning system supports an A-RTK base station and RTK network, which help provide stable, accurate data acquisition in complex operating environments.


    Capture Every Detail

    The EVO II Pro RTK has a high dynamic range and powerful low-light performance, enabling users to capture explicit imagery without missing any detailed information.


    6K Ultra HD Video

    The 6K resolution ultra-high-definition lens, supported by a 1-inch sensor, makes it easy to achieve professional shooting results.

    High-resolution Camera

    The 1-inch CMOS sensor coupled with 20 MP and f/2.8 - f11 aperture, gives you the versatility needed to capture the best images in various mission scenarios.

    EVO II PRO RTK

    Light. Efficient. Reliable.

     The EVO II Pro RTK inherits the foldable design of the original EVO II Series, making it compact, light, portable, and ready to fly in just a matter of seconds. Alongside a 5.5-mile maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 45 mph, making it the perfect flying companion for your daily missions.

    Mission Execution With Advanced Intelligence

    The EVO II Pro RTK provides users with a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission workflows and help reduce operating costs.

    RTK / PPK

    The Evo II RTK Series supports third-party base stations with NTRIP capability.

    Enhanced Dynamic Track

    EVO II Pro RTK can model the location and speed of targets simultaneously, predict their trajectory accurately, avoid obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

    360° Obstacle Avoidance

    EVO 2 Pro Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.



    RTK High-precision GNSS Base Station

    The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.

    Application Field




  • Autel EVO 2 Pro Specs

    Camera

    Sensor 1" CMOS
    Effective Pixels: 20 MP
    Performance temperature: -10~60°C
    Lens FOV: 82°
    35mm Format Equivalent: 28.6 mm @ f/2.8
    Aperture: f/2.8–f/11
    Shooting Range: 1 m to ∞
    ISO Range Video: 100~3200 (Auto)
    Video: 100~6400 (Manual)
    Photo: 100~3200 (Auto)
    Photo: 100~12800 (Manual)
    Shutter Speed Electronic Shutter: 8 ~ 1/8000s
    Digital Zoom 1 ~ 8x (Max. 3x lossless zoom)
    Still Image Resolution 5472x3648 (3:2)
    5472x3076 (16:9)
    3840x2160 (16:9)
    Still Image Format JPEG / DNG (RAW)
    Still Photography Modes Single Shot
    Burst shooting: 3/5 frames
    Automatic Exposure Bracketing (AEB):
    3/5 bracketed frames at 0.7 EV Bias
    Timelapse:
       JPG: 2s/5s/7s/10s/20s/30s/60s
       DNG: 5s/7s/10s/20s/30s/60s
    HyperLight: support (under 4K JPEG format)
    Long Exposure: Max 8s
    HDR imaging: (under 4K JPEG)
    Video Resolution 6K 5472x3076 p30/p25/p24
    5K 4800x2700 p60/p50/p48/p30/p25/p24
    4K 3840x2160 p60/p50/p48/p30/p25/p24
    2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24
    1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24
    Video Format MOV / MP4
    Codecs H.264 / H.265
    Max Video Bitrate 120Mbps

    Gimbal

    Weight 0.23 lbs (107g)
    Mechanical Range Pitch: -135~45°
    Roll: -45~45°
    Yaw: ±100°
    Controllable Range Pitch: -90~0°
    Yaw: -90~90°
    Stabilization 3-Axis (Tilt, Roll, Pan)
    Max Control Speed (Tilt) 300°/s
    Angular Vibration Range ±0.005°

    Aircraft

    Takeoff Weight 2.6 lbs (1191 g)
    Dimensions Folded: 8.98 x 5.24 x 4.33 in (L x W x H)
    (228 x 133 x 110 mm)
    Unfolded: 16.69 x 13.94 x 4.33 in (L x W x H)
    (424 x 354 x 110 mm)
    Diagonal Distance 15.63 in (397 mm)
    Max Ascent Speed Standard mode: 11.18 mph (5 m/s)
    Ludicrous mode: 17.89 mph (8 m/s)
    Max Descent Speed Standard mode: 6.71 mph (3 m/s)
    Ludicrous mode: 8.94 mph (4 m/s)
    Max Speed (near sea level, no wind) Standard mode: 33.55 mph (15 m/s)
    Ludicrous mode: 44.73 mph (20 m/s)
    Max Service Ceiling Above Sea Level 22,965 ft (7000 m)
    Max Flight Time (no wind) 40 minutes
    Max Hovering Time (no wind) 35 minutes
    Max Flight Distance (no wind) 15.53 miles (25 km)
    Max Wind Resistance Force 8 wind
    Max Tilt Angle Standard mode: 28°
    Ludicrous mode: 33°
    Max Angular Velocity 120°/second
    Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
    Transmission Power (EIRP)

    2.4~2.4835GHz
    FCC/ISED: ≤27 dBm
    SRRC/CE/MIC/RCM:≤20dBm

    GNSS GPS/GLONASS/VIO/ATTI
    Hovering Accuracy Range Vertical:
    ± 0.78 in (when vision positioning is active)
    ± 7.87 in (with GPS positioning)
    Horizontal:
    ± 0.78 in (when vision positioning is active)
    ± 3.28 ft (with GPS positioning)
    Internal Storage 8 GB
    SD Storage Standard: 32 GB
    Max Micro SD Card Supported: 256 GB

    Sensing System (Obstacle Avoidance)

    Sensing System Omnidirectional Obstacle Sensing
    Forward Precision Measurement Range: 0.5-20 m
    Detectable Range: 0.5-40m
    Effective Sensing Speed: <15m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Backward Precision Measurement Range: 0.5-16 m
    Detectable Range: 0.5-32m
    Effective Sensing Speed: <12m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Upward Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Downward Precision Measurement Range: 0.5-11 m
    Detectable Range: 0.5-22m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 90°, Vertical: 70°
    Sides Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <10m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Operating Environment Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
    Downward: Surface with clear pattern and adequate lighting (lux > 20)
    Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

    Remote Controller and Transmission

    Working Frequency 2.4~2.4835GHz
    Max Transmission Distance FCC: 5.59 miles (9 km)
    CE: 3.10 miles (5 km)
    Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
    Transmission Power (EIRP) 2.4~2.4835GHz
    FCC/ISED:≤27dBm
    SRRC/CE/MIC/RCM:≤20dBm
    Real-Time Transmission Quality 720p@30fps / 1080p@30fps
    Max Bitrate of Real-time Transmission 40Mbps
    Remote Controller Battery 5000 mAh
    Weight 0.82 lbs (370g)
    Operating Current/Voltage 1.7A @ 3.7V
    Charging Temperature Range 32°F to 104°F (0 to 40°C)
    Supported Mobile Device Size Max Length: 3.30" (84mm)
    Max Thickness: 0.51" (13mm)
    Supported USB Port Types Lightning, Micro USB (Type-B), USB-C
    Operating Hours 3 hours
    OLED Brightness 330 nit

    Battery

    Capacity 7100 mAh
    Battery Type LiPo 3S
    Battery Energy 82 Wh
    Voltage 11.55 V
    Max Charging Voltage 13.2 V
    Charging Temperature Range 41°F to 104°F (5°C to 40°C)
    Max Charging Power 92 W
    Net Weight 0.81 lbs (365g)
